Date: 27 November 2023



Subject: "The Reference Routes for Common Navigation Methods between Lianyungang-Ganyu-Lanshan" – Jointly Published by Lianyungang and Shandong MSA


Recently, the reference routes for common navigation methods in Haizhou Bay was jointly published by Lianyungang and Shandong MSA in order to smooth the traffic lanes between different port areas in Haizhou Bay and reduce the risk of collision between merchant and fishing vessels. This is the first time that the maritime department publishes the reference route for this water area. This Circular aims to introduce these reference routes for the Club and Members’ reference.



Information about Reference Route

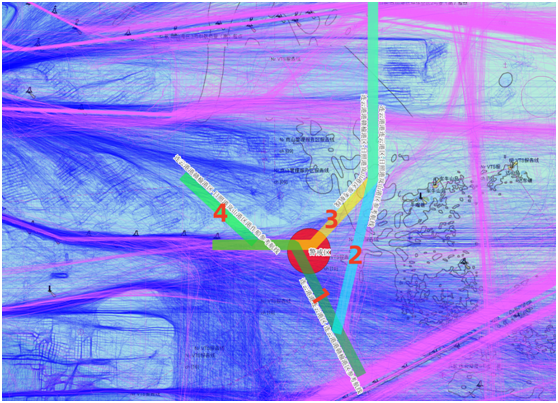

The published reference routes include four reference routes connecting the three ports, with a total distance of approximately 48.1 nautical miles and a Precautionary Area is set up, providing a reference basis for route planning for merchant vessels navigating between Lianyungang, Ganyu and Lanshan port.

The basic information such as coordinates of the starting, ending and turning points, course, distance, and charted depth of the routes are tabulated as follows:

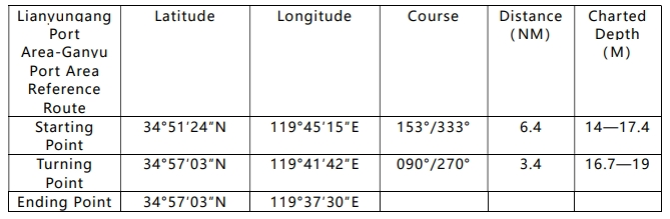

1) The reference route starts from the main channel of Lianyungang Port and ends at Ganyukoumen light buoy.

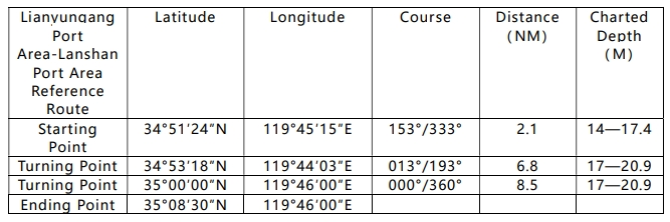

2) The reference route starts from the main channel of Lianyungang Port and ends at Rizhao No. 4 route.

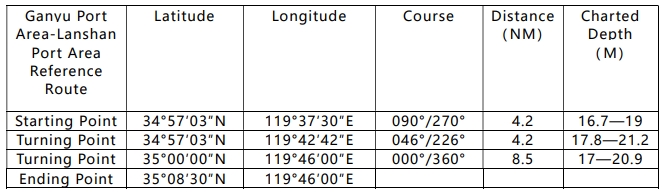

3) The reference route starts from Ganyukoumenlight buoy and ends at Rizhao No.4 route.It is reported that a wreck exists at position (34 ° 57 ′ 00 ″ N, 119 ° 43 ′ 00 ″E). Vessels should pay attention to the changes of the sounding depth to avoid scraping the wreckwhen sailing through this water area.

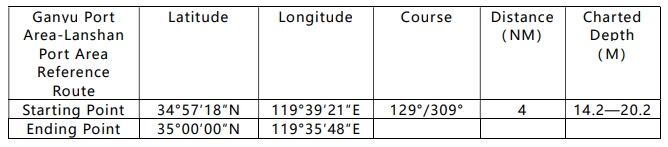

4) The reference route starts from the waters of Ganyukou and ends at the boundary between Ganyu Port Area and Lanshan Port Area. The measured width of the reference route is only 200-300 meters and the navigation environment is complex, so it is only used as a reference for small port operation vessels navigating between Ganyu Port Area and Lanshan Port Area, and is not recommended for large merchant vessels.

5) Precautionary Area

Center Position: 34°56′46″N ，119°42′30″E, Radius: 1.0NM.



Notes



1) In any case, the reference route is only for the reference of vessels’ route planning between Lianyungang Port Area, Ganyu Port Area and Lanshan Port Area and shall not exempt the Master or crew from their responsibility for the safe navigation of the vessel.



2) The reference route is only for the reference of vessels' route planning between Lianyungang Port Area, Ganyu Port Area and Lanshan Port Area and shall not involve the ownership of the sea areas.



Our Suggestions



Our experiences suggest that a large number of fishing and merchant vessels that engaged in domestic trade are navigating, operating or anchoring in the Haizhou Bay area, the navigation environment is rather complex in this water area. We suggest that when navigating between the three ports of Lianyungang, Ganyu and Lanshan, on the premise of ensuring safety, vessels shall endeavor to navigate along the routes recommended by the Maritime Safety Administration. However, it should also be taken into consideration that the operating area of fishing vessels in this water area may change over time, and the distribution scope of fishing gears, nets and fishery farms may also change with the seasons. Therefore, vessels should exercise extreme caution when navigating along the recommended routes, adopt safe speed and maintain proper lookout.  If it is safe and feasible, it is also advisable to post lookouts and emergency anchoring team on the forecastle to cope with the occurrence of emergency situations. In case a large number of navigation obstructions such as fishing vessels，fishing gears, nets or fishery farms are found on the recommended route when navigating along it, the vessel should promptly maneuver away to ensure safety.

Source: HUATAI
